7 Ribs 8 Openings Galvanized Rib Lath Expanded Sheet 610mm X 2440mm Construction Plaster Mesh

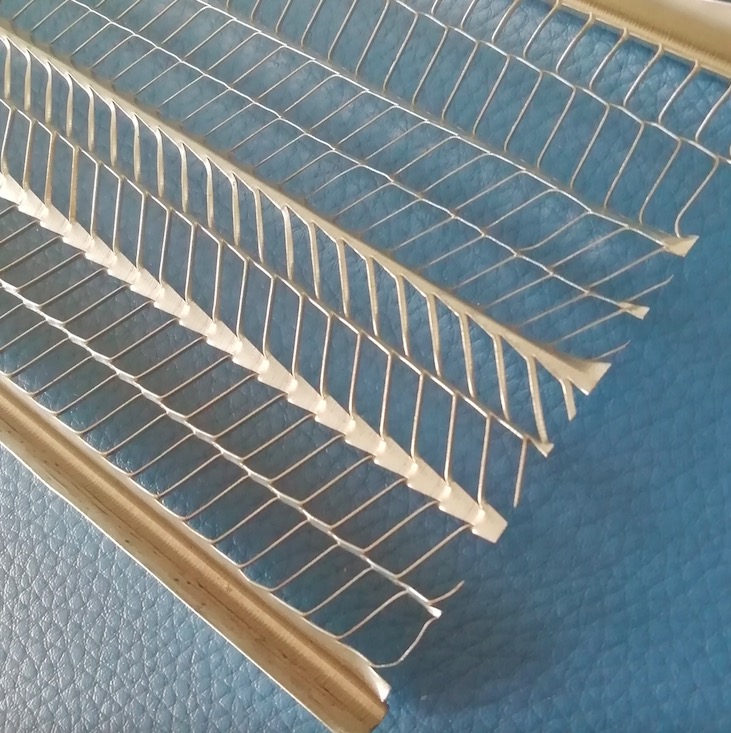

Rib Lath is made from hot dipped galvanized metal sheet by perforation process and expanding process.
It is a versatile metal lath stiffened by the longitudinal ribs. It has V ribs and greater tensile strength, offering excellent plaster base and reinforcement for all types of walls, ceilings and fireproofing of steel beam, and columns. Rib Lath provides plaster & render backing and is also suitable for the refurbishing of damaged or deteriorated faces of masonry walls.
Specification
| 7 Rib 8 Opening |
| Thickness(mm) | Rib Distance(mm) | Weight (KG) | Width X Length(mm) |
| 0.10 | 100 | 1.79 | 610 X 2440 |
| 0.35 | 100 | 2.09 | 610 X 2440 |
| 0.40 | 100 | 2.38 | 610 X 2440 |
| 0.45 | 100 | 2.68 | 610 X 2440 |
| 0.5 | 100 | 2.98 | 610 X 2440 |
| 5 Rib 8 Opening |
| Thickness(mm) | Rib Distance(mm) | Weight (KG) | Width X Length(mm) |
| 0.10 | 150 | 1.31 | 610 X 2440 |
| 0.35 | 150 | 1.53 | 610 X 2440 |
| 0.40 | 150 | 1.75 | 610 X 2440 |
| 0.45 | 150 | 1.96 | 610 X 2440 |
| 0.5 | 150 | 2.17 | 610 X 2440 |
| 9 Rib 4 Opening |
| Thickness(mm) | Rib Distance(mm) | Weight (KG) | Width X length(mm) |
| 0.10 | 75 | 1.89 | 610 X 2440 |
| 0.35 | 75 | 2.28 | 610 X 2440 |
| 0.40 | 75 | 2.53 | 610 X 2440 |
| 0.45 | 75 | 2.84 | 610 X 2440 |
| 0.5 | 75 | 3.15 | 610 X 2440 |
Installation
General
- Rib Lath must be fixed with the apexes of the ribs in contact with the support or the backing.
- Rib Lath should be lapped at the sides wire tied at intervals not exceeding 150mm.
- At the ends of the sheets, the Rib Lath should be overlapped with at least 100mm (4”).
Ceilings
- For steel beams, wire ties are needed.
- For timber joists, the rib lath can be secured by fixing nails through the rib.
- For concrete beams, it is recommended to cast a timber-nailing strip to accept nails.
Partitions
- Nails or wire ties to secure the rib lath.
Package
With pallets, each pallet quantity according to request.
Our tenet is Prestinge First, Quality First,Efficiency First and Service First.
All inquires will be replied within 8 hours
High Quality, Reasonable prices, prompt delivery, perfect after-sales services.
Quality Quarantee:
A. All goods strictly inspected during production.
B. All products must be checked strictly before packing.
C. Every consignment must be re-inspected before shipment.
D. You are more than welcomed to my factory to inspect the goods at any time. Payment made via TT, LC, Western Union or DP.
Shipment:
A. Small and light and valuable goods will be sent by DHL, TNT, UPS, FED by airplane.
B. Large and heavy goods will be shipped by LCL, FCL or bulk vessel.
