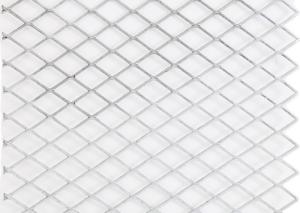

Aluminum Light Type Expanded Metal Mesh Roll 30mm X 10mm Opening 0.8mm Thickness
Aluminum Light Type Expanded Metal Mesh has various types of applications, home decoration; smoke lampblack machine, air conditioner,aire conditioning screen pack; antenna, fly swatter and all kinds of car decorative nets; handicraft production; high-grade large feed speaker net and so on.
Aluminum expanded metal mesh is a form of metal stock made bu shearing a metal plate in a press, so that the metal stretches, leaving diamond-shaped voids surrounded by interlinked bars of the metal. The most common method of manufacture is to simultaneously and stretch the material with one motion.
| Specifications of aluminum expanded metal mesh |
| Tickness(mm) | SWD(mm) | LWD(mm) | Wire stems width(mm) | Width(m) | Length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4 | 60 | 120 | 4 | 2 | 7.5 | 4 |
| 4 | 80 | 180 | 4 | 2 | 10 | 3 |
| 4 | 100 | 200 | 4 | 2 | 12 | 2.5 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 2 | 2.6 | 12.39 |
| 5 | 75 | 150 | 5 | 1.4 | 10 | 3 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
Our tenet is Prestinge First, Quality First,Efficiency First and Service First.
All inquires will be replied within 8 hours
High Quality, Reasonable prices, prompt delivery, perfect after-sales services.
Quality Quarantee:
A. All goods strictly inspected during production.
B. All products must be checked strictly before packing.
C. Every consignment must be re-inspected before shipment.
D. You are more than welcomed to my factory to inspect the goods at any time. Payment made via TT, LC, Western Union or DP.
Shipment:
A. Small and light and valuable goods will be sent by DHL, TNT, UPS, FED by airplane.
B. Large and heavy goods will be shipped by LCL, FCL or bulk vessel.
